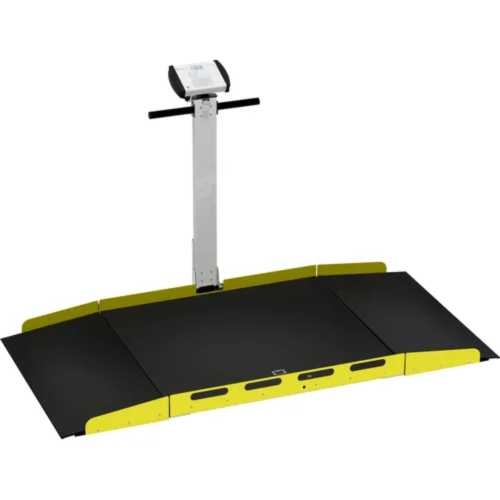

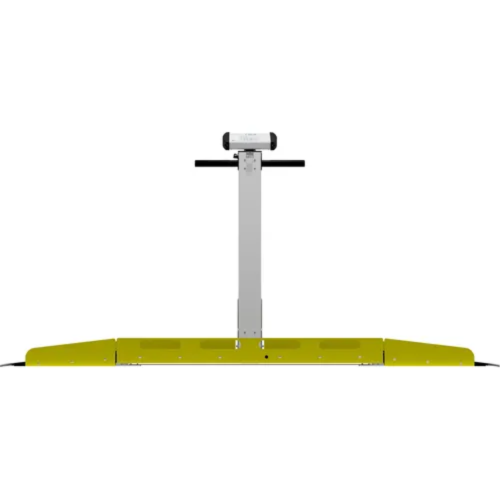

Detecto 7150-AC ADA-Compliant Wheelchair Scale
NTEP-certified, ADA-compliant wheelchair scale

The Detecto 7150-AC ADA-Compliant Wheelchair Scale is engineered for healthcare facilities requiring enhanced accessibility, patient safety, and certified medical accuracy. Its extended 40" platform and 1:8 shallow-angle ramps allow smooth roll-on access, while integrated side guide rails help maintain proper wheelchair positioning during weighing. The low-profile 2.2" platform supports patient comfort and streamlined clinical workflow.

Key Features:

• Side guide rails for improved wheelchair positioning and patient safety
• 1,000 lb / 450 kg capacity
• 2-way easy-access wheelchair ramps (ramps rest on floor)
• Low-profile 2.2" (56 mm) high platform
• Foldable design with collapsible column and quick-release lever
• Two integral wheels for transport
• NTEP certified for medical dosage accuracy
• BMI calculation
• Single-pass weighing with keypad and push-button tare
• EMR/EHR ready
• RS232 serial, USB, and optional wired or Wi-Fi Ethernet connectivity
• Operates on included AC adapter or 6 C batteries (not included)
• Ships 90% assembled
• OIML EC Class III model available

Specifications:

• Capacity: 1,000 lb × 0.2 lb / 450 kg × 0.1 kg
• Platform Size: 40" × 36" × 2.2" (101.6 cm × 91 cm × 5.6 cm)
• Ramp Size: 36" × 17.38" (91.4 cm × 44.15 cm) each
• Folded Depth: 11.4" (28.9 cm)
• Overall Dimensions: 75" W × 45" H × 40" D (190.5 cm × 114.3 cm × 101.6 cm)
• Display: 5-digit, 7-segment LCD with 7/8" high weight digits
• LCD Dimensions: 3.5" W × 3" H (89 mm × 76 mm)
• Keypad: 19-key, color-coded, sealed membrane
• Resolution: 5,000 divisions (max.)
• Operating Temperature: 14°F to 104°F (-10°C to +40°C)
• Power: Model 6800-1045 AC adapter (included) or 6 C batteries (not included)
• Portability: Two integral wheels
• Net Weight: 143 lb (65 kg)
• Shipping Weight: 190 lb (86 kg)
• Country of Origin: USA
• Certification: NTEP certified for medical dosage accuracy
