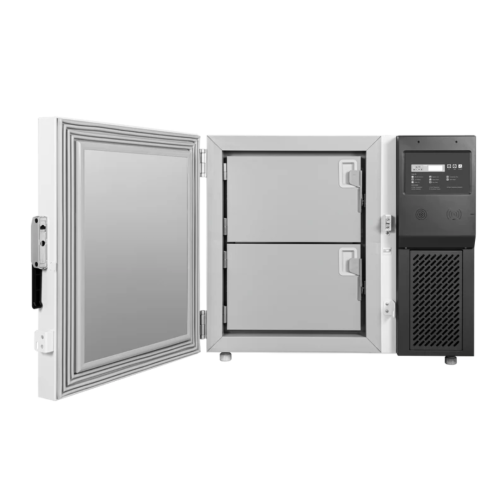

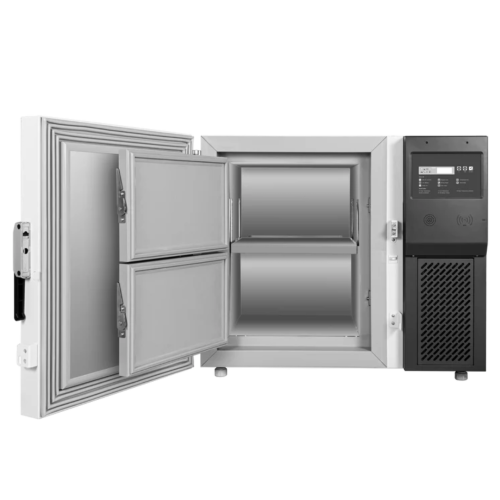

Pharmacold LAB-86U108 ULT Freezer
Dependable long-term storage for sensitive biological samples.

The Pharmacold LAB-86U108 Ultra-Low Temperature Freezer provides dependable long-term storage for sensitive biological samples. Designed with high-quality components sourced from Germany and the United States, this upright ULT freezer delivers enhanced reliability and an extended service life, up to 20% longer compared to standard systems.

With a storage capacity of up to 9,000 × 2 mL vials, the LAB-86U108 maximizes sample storage in a compact footprint. Advanced temperature control and excellent uniformity help maintain optimal storage conditions, reducing the risk of sample degradation. The system can pull down to -81°C within approximately three hours at an ambient temperature of 25°C, ensuring rapid stabilization after loading.

Multiple built-in alarms monitor critical conditions such as temperature fluctuations, power failure, and door status, helping protect valuable samples and maintain laboratory compliance.

Key Features

• Ultra-low temperature storage for laboratory samples
• Capacity for up to 9,000 x 2 mL vials
• High-quality imported components for improved durability
• Rapid cabinet pull-down to -81°C in approximately 3 hours
• Microprocessor-controlled temperature system
• LED display for clear monitoring
• Multiple alarm systems for operational safety
• USB interface for data access
• Backup battery with up to 52 hours of endurance
• Door heating system helps prevent condensation

Technical Specifications

• Product Model: LAB-86U108
• Type: Ultra-Low Temperature (ULT) Freezer
• Cabinet Type: Upright
• Cooling Type: Direct Cooling
• Defrost Mode: Manual
• Refrigerant: Mixed Refrigerant
• Temperature Range: -40°C to -86°C (-40°F to -122°F)
• Temperature Accuracy: 0.1°C
• Temperature Uniformity: ±2°C
• Controller: Microprocessor Thermostat
• Display: LED
• Noise Level: 58 dB(A)

Dimensions and Capacity

• Capacity: 85 L (3 cu. ft.)
• Exterior Dimensions (W × D × H): 95.5 × 67.5 × 81.5 cm (37.60 × 26.57 × 32.09 in)
• Interior Dimensions (W × D × H): 44 × 43.5 × 59 cm (17.32 × 17.13 × 23.23 in)
• Net Weight: 113 kg
• Gross Weight: 141 kg

Alarm and Monitoring Features

• High and Low Temperature Alarm
• Door Ajar Alarm
• Power Failure Alarm
• Low Battery Alarm
• Sensor Failure Alarm
• Environment Temperature Alarm
• Hot Condenser Alarm
• Communications Failure Alarm

Included Accessories

• USB Interface
• Door Heating System
• Cable Port (1)
• Shelf (1)
• Backup Battery

Warranty
Units Purchased on or after January 1, 2024

• 2-Year Parts Coverage
• 1-Year Labour Coverage
• 5-Year Compressor Warranty
• 1-Year Full Unit Replacement Assurance*

* If a verified refrigerant leak or compressor failure occurs within the first year of ownership, the unit will be replaced in full at no cost to the customer.
