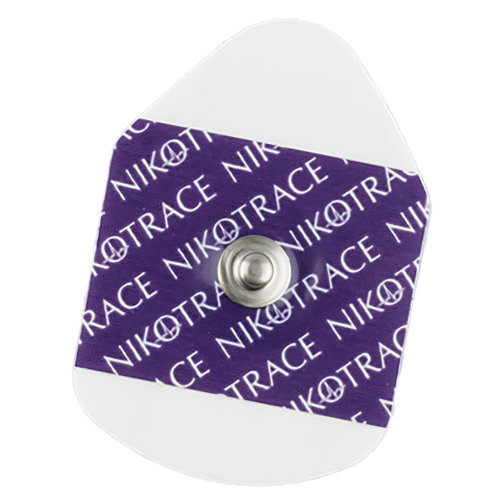

Nikotrace 3015 Thumbnail Foam ECG Monitoring Electrodes - Box of 600
Low-Profile ECG Electrodes for Stress Testing, Holter Monitoring & Cardiac Assessment

The NIKOMED 3015 ECG electrodes feature a compact thumbnail design with premium foam backing, making them ideal for stress testing, Holter monitoring, EMS, and echo applications. The low-profile 50 x 35mm design provides exceptional comfort and secure adhesion during active monitoring and exercise testing.

Key Features & Benefits

Compact Thumbnail Design

• Space-efficient 50 x 35 x 1mm thumbnail shape fits comfortably on smaller placement areas
• Low-profile design (1473mm² total area) minimizes interference during stress tests and physical exams
• Ideal for pediatric patients and areas requiring smaller electrodes
• Perfect for multi-lead placements without overlap

Premium Foam Construction

• Soft, conformable foam backing molds to body contours for superior comfort
• Breathable material reduces skin irritation during extended wear
• Flexible design moves with the patient during stress testing and ambulatory monitoring
• Excellent for active patients and exercise ECG protocols

Medical Grade Performance

• Solid gel technology (201mm²) ensures consistent electrical conductivity
• Silver/silver chloride (Ag/AgCl) sensor delivers accurate, low-noise signal transmission
• Ultra-low DC offset voltage (0.12mV) - significantly below AAMI's 100mV limit
• Low AC impedance (60 ohms @ 10Hz) for superior signal quality
• Outstanding defibrillation overload recovery (0.0 mV/sec) for rapid baseline return

Enhanced Adhesion for Active Monitoring

• Medical-grade enhanced adhesive (1211mm² adhesive area) stays secure during movement
• Specifically designed for stress testing and ambulatory monitoring
• PVC and latex-free construction minimizes allergic reactions
• Bio-compatible per ISO 10993 standards for sensitive skin safety

Comprehensive Regulatory Compliance

• FDA Registered (Class II - CFR 21 870.2360)
• Health Canada Licensed
• CE Mark compliant with 2017/745 EU MDR
• ISO 13485 certified manufacturing
• RoHS Directive compliant
• DEHP-free formulation
• MRI conditional for safe imaging procedures

Professional Specifications

• Shape & Size: Thumbnail, 50 x 35 x 1mm (1473mm² total area)
• Backing Material: Premium foam for superior comfort
• Connector: Durable stainless steel stud for universal compatibility
• Release Liner: Siliconized PET film for easy, clean removal
• Shelf Life: 24 months in sealed packaging
• Recommended Use: Stress testing, Holter monitoring, EMS, Echo

Why Choose NIKOMED 3015 Electrodes?

The thumbnail foam design makes the 3015 the preferred choice for healthcare professionals conducting stress tests, ambulatory monitoring, and echo procedures. The compact footprint allows for precise placement in confined areas, while the foam backing ensures patient comfort during active monitoring sessions.

Ideal Applications:

• Cardiac stress testing and exercise ECG
• Holter monitoring and ambulatory ECG
• Emergency Medical Services (EMS)
• Echocardiography procedures
• Pediatric cardiac monitoring
• Event monitoring
• Telemetry during patient activity

Perfect for Active Monitoring

Unlike rigid electrodes, the 3015's foam construction flexes with patient movement, maintaining excellent skin contact during:

• Treadmill stress tests
• Exercise tolerance testing
• 24-48 hour Holter monitoring
• Ambulatory cardiac monitoring
• Active rehabilitation monitoring
