The Edan SE-301 is a professional-grade portable ECG machine built for clinicians who need full 12-lead diagnostic capability without being tied to a fixed clinical space. This category brings together the SE-301 unit and its essential consumables and accessories — including compatible recording paper — so you can source everything in one place.

About the Edan SE-301 Portable ECG

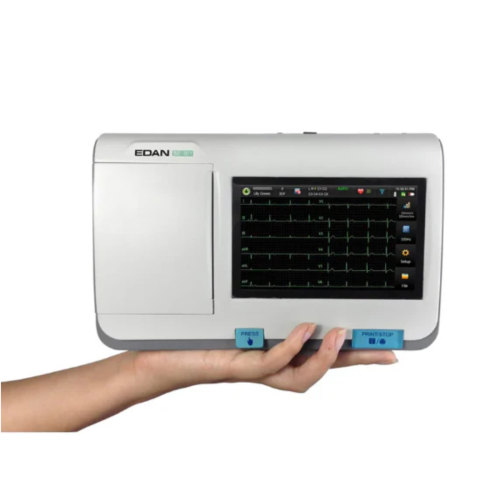

The SE-301 is one of the most capable sub-1 kg ECG machines available for clinical use. It acquires all 12 leads simultaneously, displays results on a 5-inch colour touchscreen, and runs for up to 8.5 hours on a single battery charge — making it equally at home on a busy hospital ward, in an emergency vehicle, or during a community home visit.

Unlike many portable ECG devices that compromise on connectivity or output quality, the SE-301 supports Wi-Fi, Ethernet, and SIM card connectivity for direct EMR integration, and produces reports in PDF, DICOM, SCP, and XML formats. The built-in SEMIP® algorithm provides reliable diagnostic interpretation at the point of care, with an optional Glasgow Algorithm available for paediatric ECG interpretation.

Key features at a glance:

• Simultaneous 12-lead acquisition in a 3-channel portable device
• 5" high-resolution colour touch screen with colour-coded signal quality indicators
• Up to 8.5 hours battery life on a full charge
• Stores up to 800 ECGs internally
• Connects to EMR via Wi-Fi, Ethernet, or SIM card
• Exports reports in PDF, DICOM, SCP, and XML formats
• SEMIP® ECG interpretation algorithm built in
• Optional Glasgow Algorithm with paediatric ECG interpretation
• Two USB ports and microSD card slot for flexible data transfer
• Weighs less than 1 kg

SE-301 Recording Paper (80mm × 20m, Part No. 01.57.78076)

Keeping your SE-301 stocked with the correct consumables is essential to maintaining consistent print quality and diagnostic reliability. The Edan SE-301 Recording Paper (part no. 01.57.78076) is the compatible thermal paper roll specified for use with the SE-301, measuring 80mm wide by 20 metres per roll.

Because the SE-301 uses thermal printing technology — meaning no ink or ribbon is required — the paper itself is the critical variable in print quality. Using the correct Edan-specified paper ensures:

• Sharp, high-contrast ECG traces that are easy to read at the bedside
• Consistent output across the full length of the roll
• Protection of the device's print head from incompatible paper coatings
• Traces that remain legible over time for records and archiving

We recommend keeping a standing stock of recording paper to avoid interruptions during busy clinical periods, particularly for teams using the SE-301 for daily ward rounds or high-volume outpatient settings.

Who is the Edan SE-301 Range For?

The SE-301 and its accessories are used across a wide range of clinical settings:

• Hospital ward teams conducting daily ECG rounds who need a reliable, lightweight device
• Emergency and retrieval services requiring rapid 12-lead acquisition in the field
• Community and home-visiting clinicians who need full diagnostic capability without the bulk of a traditional ECG machine
• Paediatric services using the optional Glasgow Algorithm for age-appropriate ECG interpretation
• Medical equipment coordinators sourcing both hardware and consumables for portable ECG programmes

Frequently Asked Questions

What accessories are available for the Edan SE-301? This category includes the SE-301 ECG unit and compatible recording paper rolls (80mm × 20m, part no. 01.57.78076). If you need additional accessories not listed here, please get in touch with our team.

What recording paper does the Edan SE-301 use? The SE-301 uses thermal recording paper rolls measuring 80mm × 20m. The correct Edan part number is 01.57.78076.

How long does the SE-301 battery last? The SE-301 runs for up to 8.5 hours on a full charge, making it suitable for a full clinical shift without needing to recharge.

Can the SE-301 connect to an EMR system? Yes. The SE-301 supports bi-directional EMR integration via Ethernet, Wi-Fi, or SIM card, with report output in PDF, DICOM, SCP, and XML formats.

Does the SE-301 support paediatric ECG interpretation? Yes, via the optional Glasgow Algorithm with specialised Children's ECG Interpretation.

How many ECGs can the SE-301 store? The SE-301 has internal storage for up to 800 ECGs, expandable via the microSD card slot.

Looking for a different Edan ECG model or accessories? Browse our full range of Edan ECG machines.
